Piece Model Editor

Piece Model Editor is a simple utility for editing "piece models" - ie. 3D models made out of individual pieces (meshes) in a hierarchy which are then animated using rotations (and translation for the root piece) to produce animated models. This tool was mainly written to be used by the Post Apocalyptic Petra game during the MS-DOS Game Jam #2. It is written in Lazarus and Free Pascal and licensed under the zlib license. The meshes can be either OBJ (only simple trianglular meshes are supported) or JTF (highly recommended).

Download version 1.1:

• A Windows executable (936KB)
• Linux executables (64bit):
  • Gtk2-based (943KB, needs Gtk2 libraries)
  • Qt6-based (1.01MB, needs Qt6 libraries, statically linked to qt6pas)
  • Gtk1-based (1.35MB, statically linked to Gtk1 libraries, needs only X11 and OpenGL)
• The source code for Lazarus (77KB, needs RTTK)

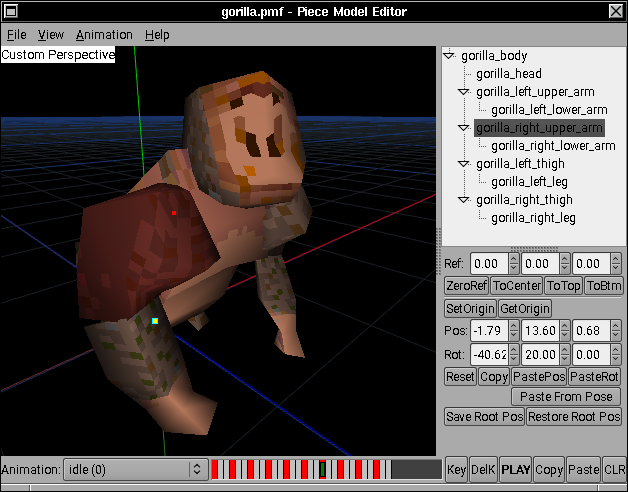

• An example gorilla model with PMF, JTF, PNG and Blender files (118KB)

Changes:

• The sidebar UI scales properly regardless of platform, font and widget toolkit
• Added an option in View menu to load a texture (only for preview purposes)
• Wireframe mode now uses a solid color
• Made sure the code compiles under Linux

Previous versions:

• Version 1.0
  • Windows executable (1MB)
  • The source code for Lazarus (76KB, needs RTTK)
